Crumbler

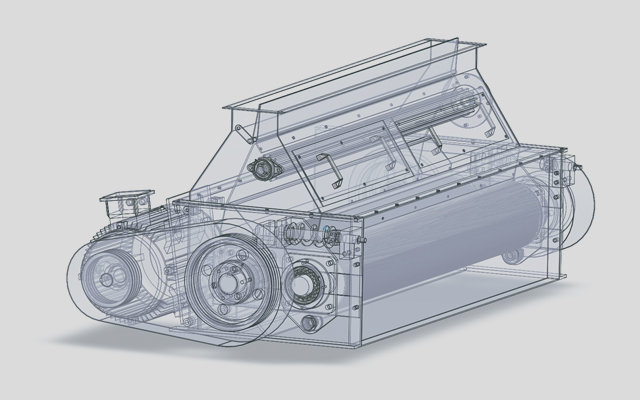

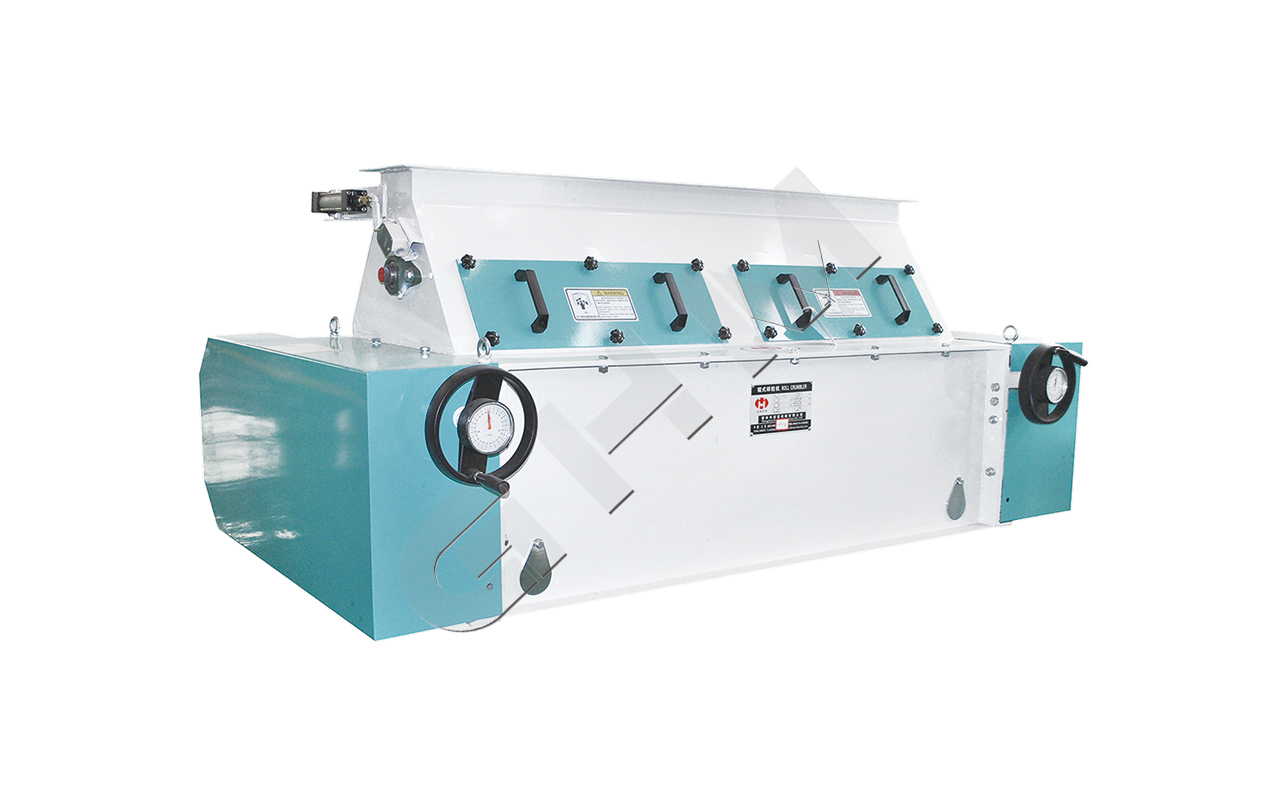

HHSLG Triple-roller Crumbler
Description
Main Feature
1. The crumbler is special equipment in pelleting process, used for crumbling of pellet feed.2.Triple rollers structure with frequency-convertible feeding
3.Special roller tooth type can meet different material crumbling requirement, good efficiency,crumbling evenly,low containing powder rate.
4.With advanced driving system by-pass structure and sampling hole ,the fineness can be controlled and adjusted, and roller can be customer-made.
Technical Parameter
Modle | HHSLG20X100 | HHSLG20X140 | HHSLG20X170 | HHSLG25X170 | HHSLG30X180 |
Capacity(t/h) | 5-10 | 8-10 | 10-15 | 15-20 | 25-30 |
Power(kw) | 7.5+1.5 | 11+1.5 | 11+1.5 | 18.5+1.5 | 22+1.5 |
